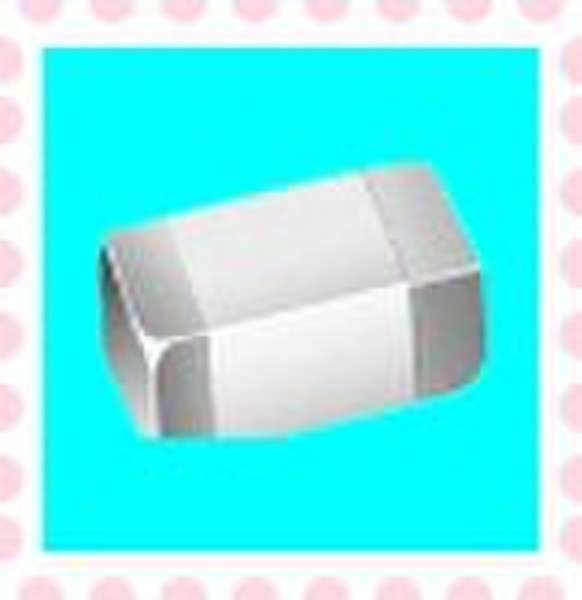

CH Series Multilayer Chip Ceramic Inductors

PART NUMBERING CH 1608 H 68N J T (f) 1 23 4 5 6 7 1:Product symbol 2:Dimension:Length*Width 3:Material code 4:Inductance:68N-22nH;R47-0.47UH,4R7-4.7UH,150-15UH 5:Tolerance:J-±5%,K-±10%,M-±20% 6:Packing style:B:Bulk;T:Tape and Reel 7:Leadfree products Features 1:Alowdielectricconstantoftheceramicdielectricmaterialandalowresistivityconductorsilver 2:AhighQvalueandhighself-resonantfrequency 3:HighFrequencyDesign(above100Mhz) 4:Multilayerstructure,highreliability,smallsize,high-densitymounting 5:Nolead-sidehead,asmallparasiticcapacitance Applications 1:High-frequencycircuits,thecircuitofmiddleincrease 2:Mobilecommunicationsequipmentterminals 3:Thefieldofhigh-frequencyEMICountermeasure 4:Smaller,lighterportableelectronicdevices
